The Force of Comminution
Vertical Roller Mill
Experience the apex of industrial grinding where massive hydraulic pressure meets kinetic rotation. Explore the aerodynamics of the dynamic classifier, master grinding bed stability, and harness the sheer power required to crush solid rock into microscopic powder.
Introduction to VRM (Vertical Roller Mill)

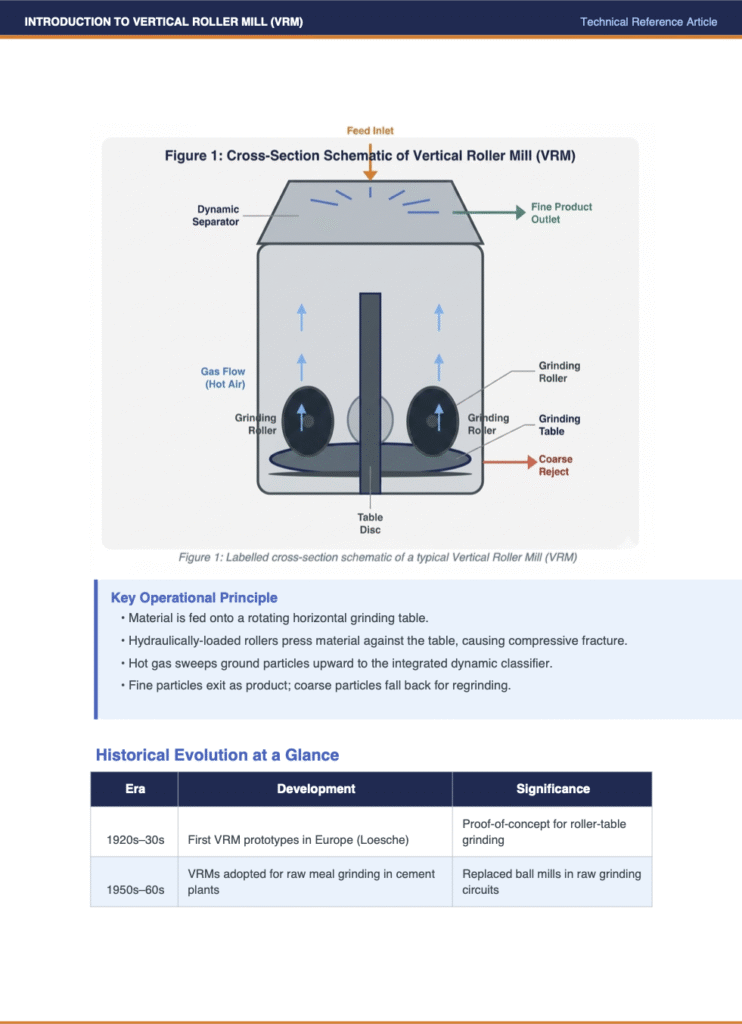

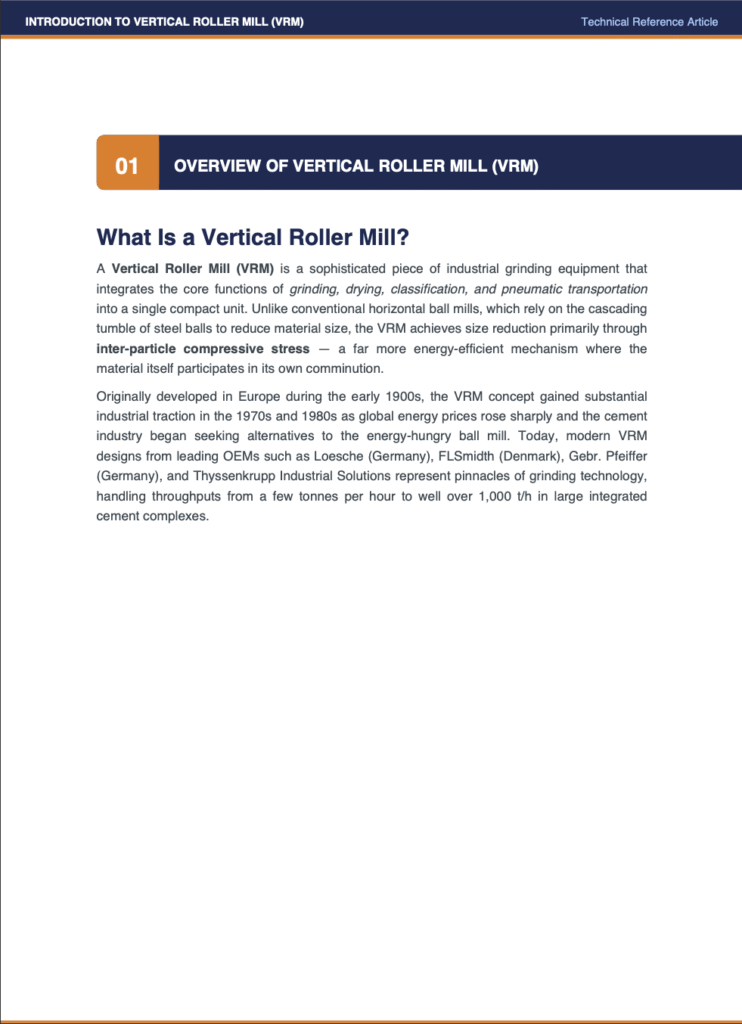

Overview of Vertical Roller Mill
Key Concepts – Vertical Roller Mill (VRM)
- Integrated System: Grinding, drying, classification, and transport in one unit
- Energy Efficient: Uses inter-particle compressive stress vs ball mill impact
- Working Principle: Rotating table + hydraulic rollers + hot gas separation
- Core Components: Table, rollers, separator, gas flow system
- High Capacity: Handles up to 1000+ TPH in large cement plants

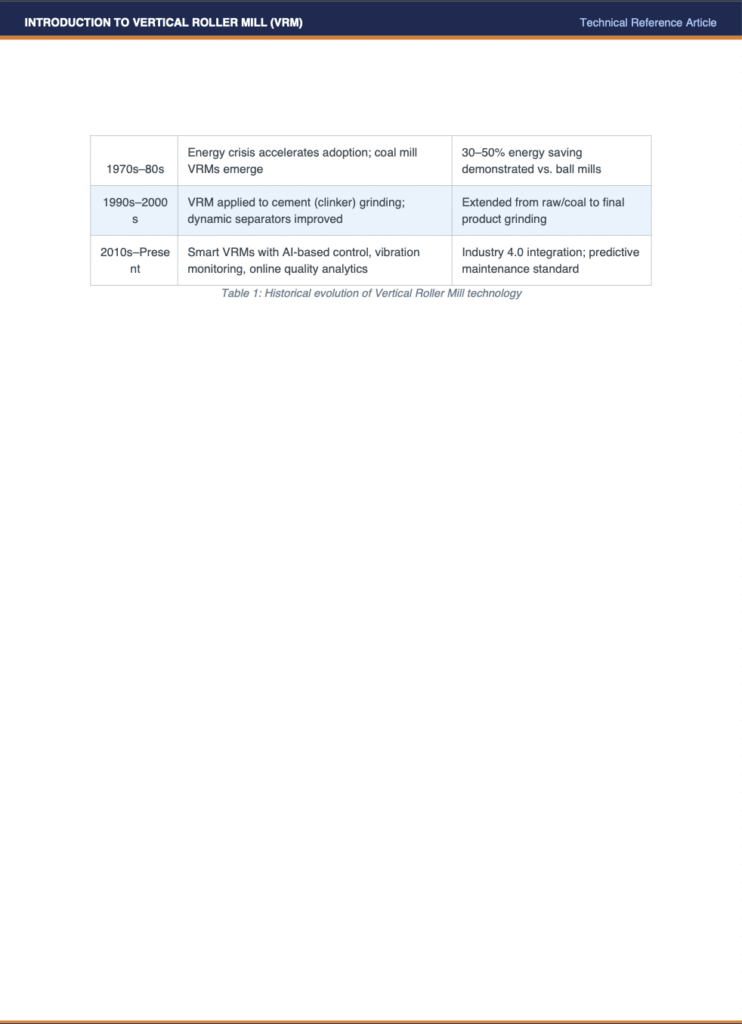

- Evolution: From early European designs to AI-enabled smart systems
- Energy Saving: 30–50% lower energy consumption than ball mills
- Modern Relevance: Industry 4.0 integration with predictive maintenance

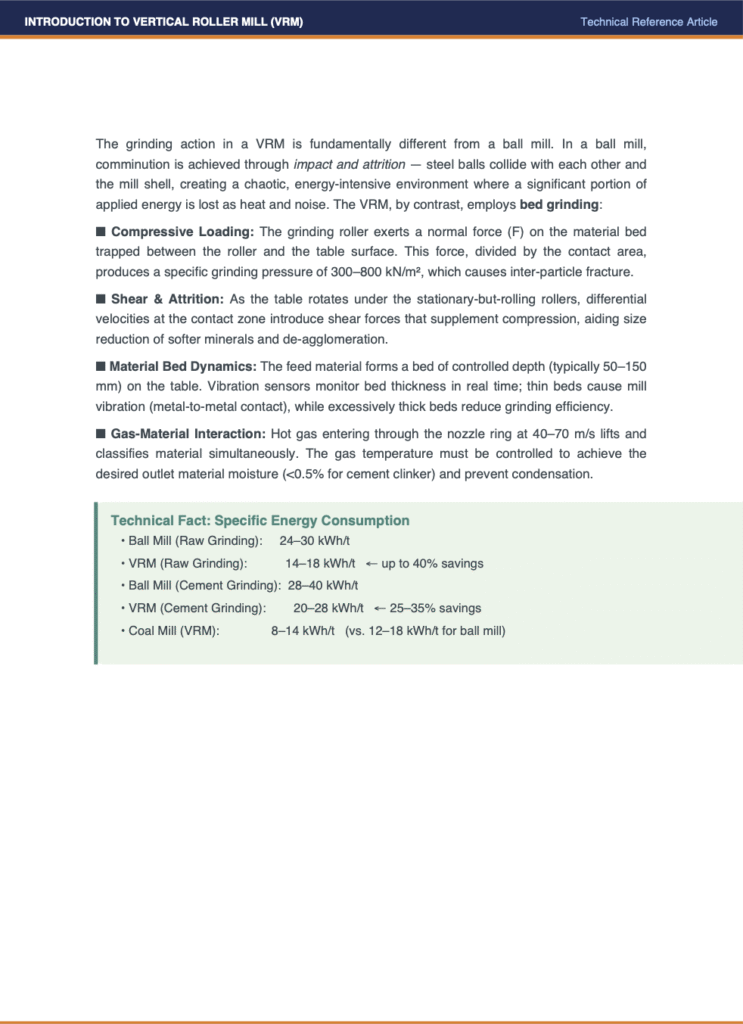

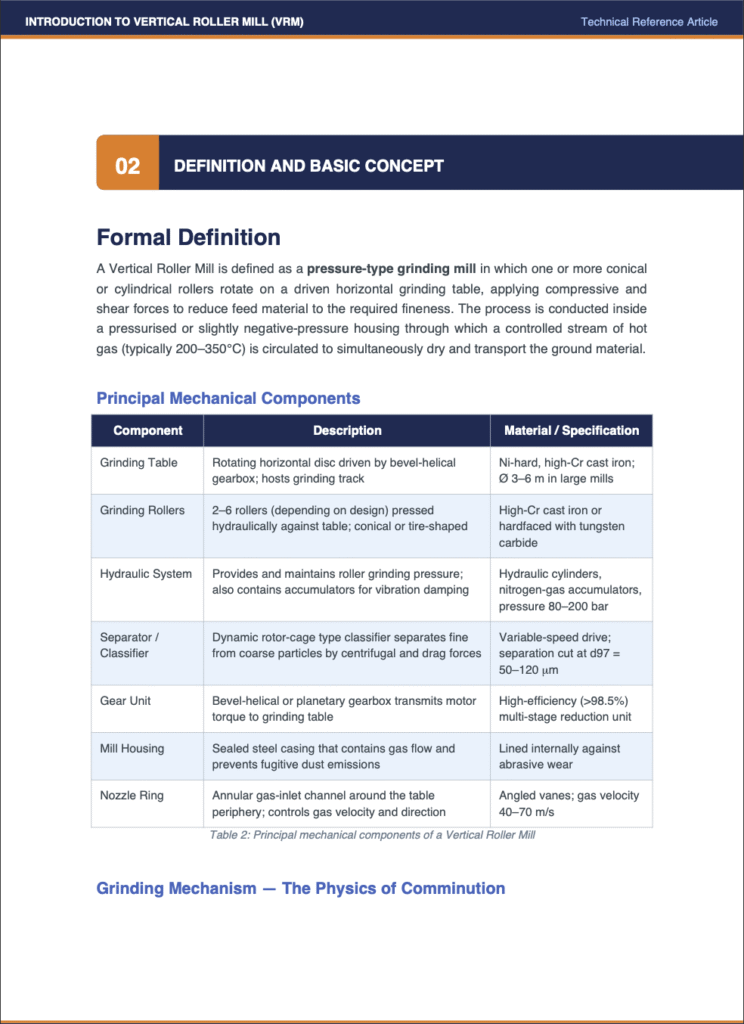

Definition and Basic Concept
Key Concepts – VRM Definition & Working
- Pressure-Type Grinding: Uses compressive and shear forces for efficient size reduction
- Integrated Drying: Hot gas (200–350°C) dries and transports material simultaneously
- Core Components: Grinding table, rollers, hydraulic system, separator, gearbox, nozzle ring
- Bed Grinding Mechanism: Material forms a stable bed for controlled comminution
- Compressive Loading: Rollers apply high pressure (300–800 kN/m²) causing particle fracture
- Shear & Attrition: Differential motion enhances grinding efficiency and de-agglomeration
- Gas–Material Interaction: Hot air lifts, dries, and classifies particles in one system
- Process Optimization: Bed thickness, gas velocity (40–70 m/s), and temperature are critical
- Energy Advantage: Up to 25–40% lower energy consumption vs conventional ball mills
- Industrial Efficiency: Enables stable operation, reduced vibration, and better product control

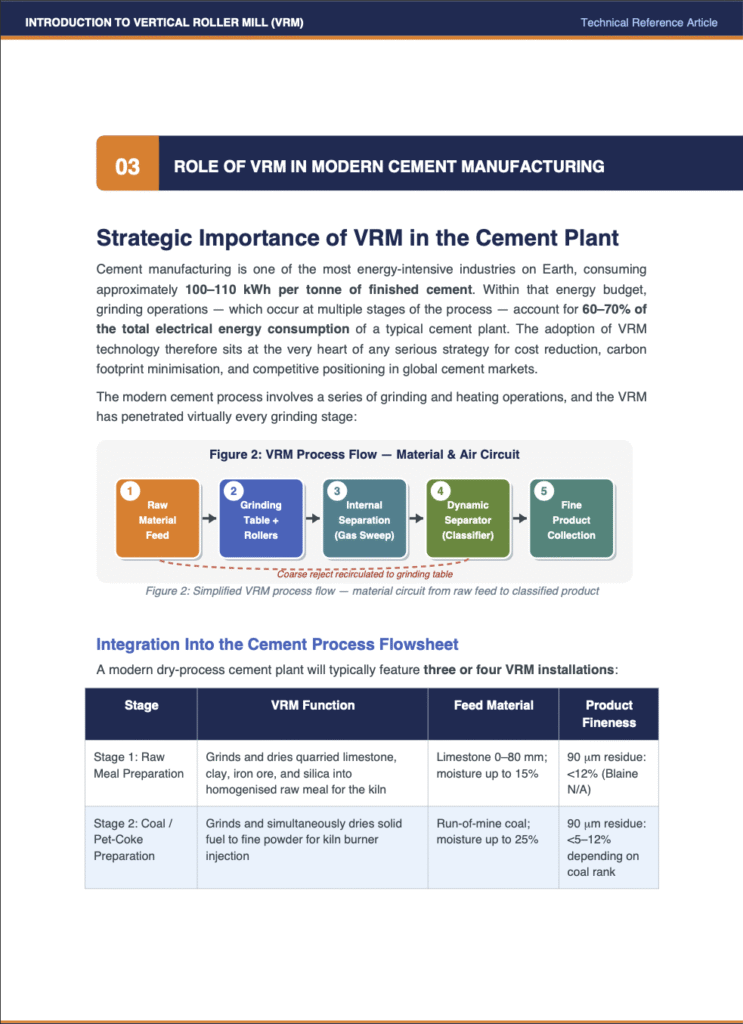

Role of VRM in Modern Cement Manufacturing
